| Baker Style Sediment Trap | |
|

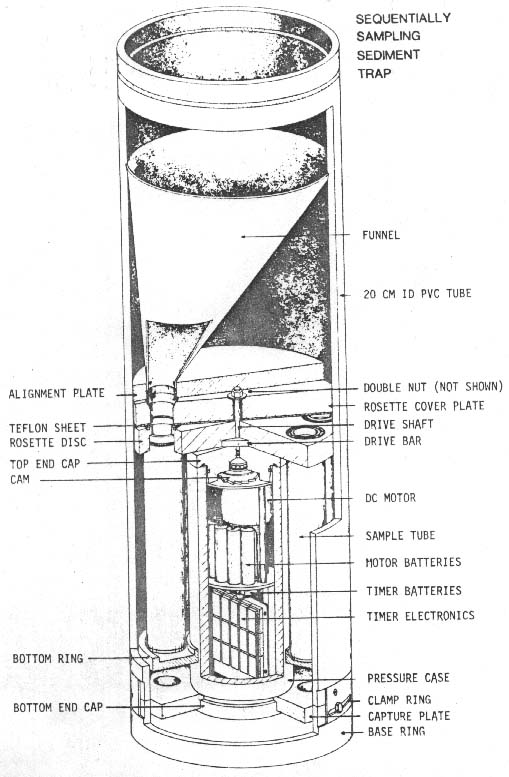

Diagram depicting the original Baker style Sequential Sampling Sediment trap. Gurney Instruments has since made modifications on this design which improve its performance and reliability.
|
|
| SEDIMENT CAROUSEL, HOUSING, AND BAFFLE | |
 |

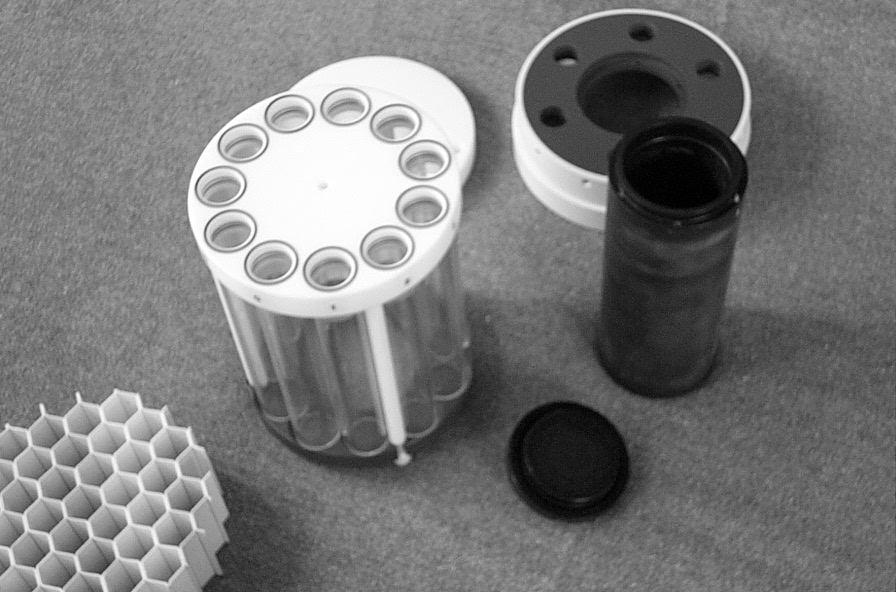

Photo shows the sediment collection tubes and sediment carousel, as well as the electronics pressure housing, trap end cap, and baffle. |
| CAROUSEL | |
|

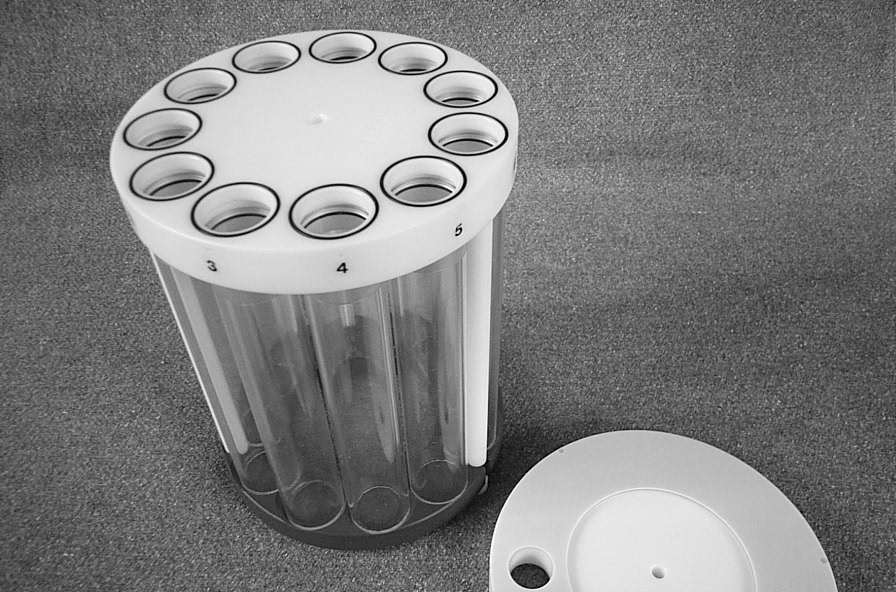

TOP: Photo of the sample
carousel showing collection tubes, carousel lid, and o-ring grooves.

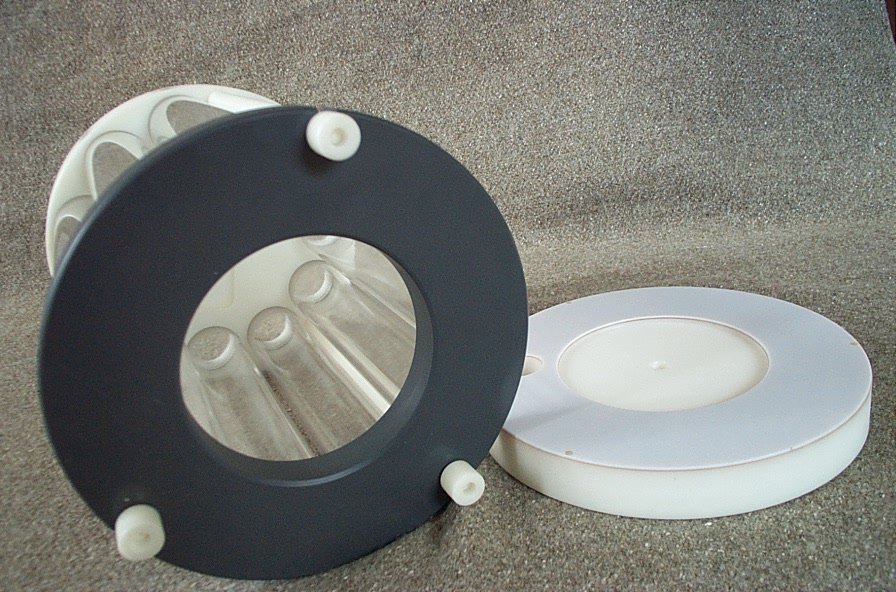

BOTTOM: Photo showing carousel and collection tubes from the bottom.
|
| ELECTRONICS | |

|

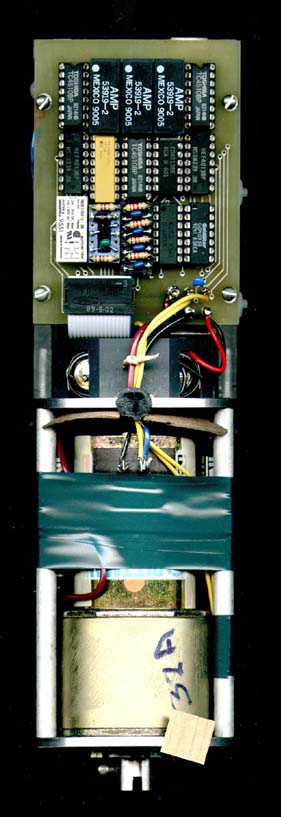

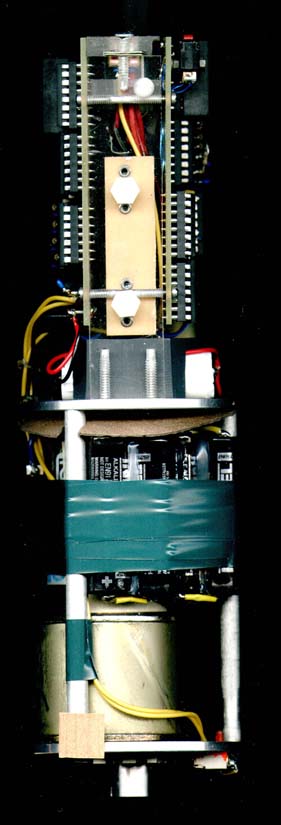

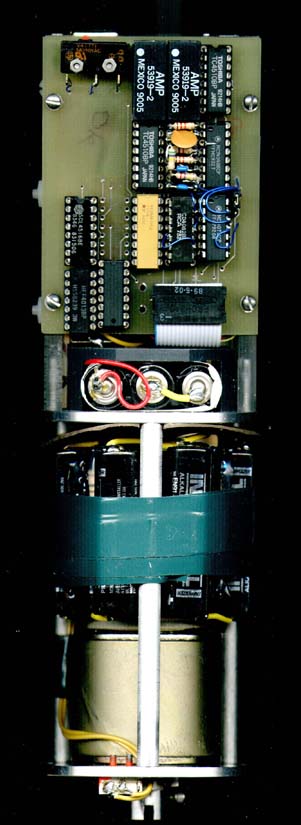

TOP: Three photos showing the
front, back and side view of the sequence controller, with battery packs
and motor.

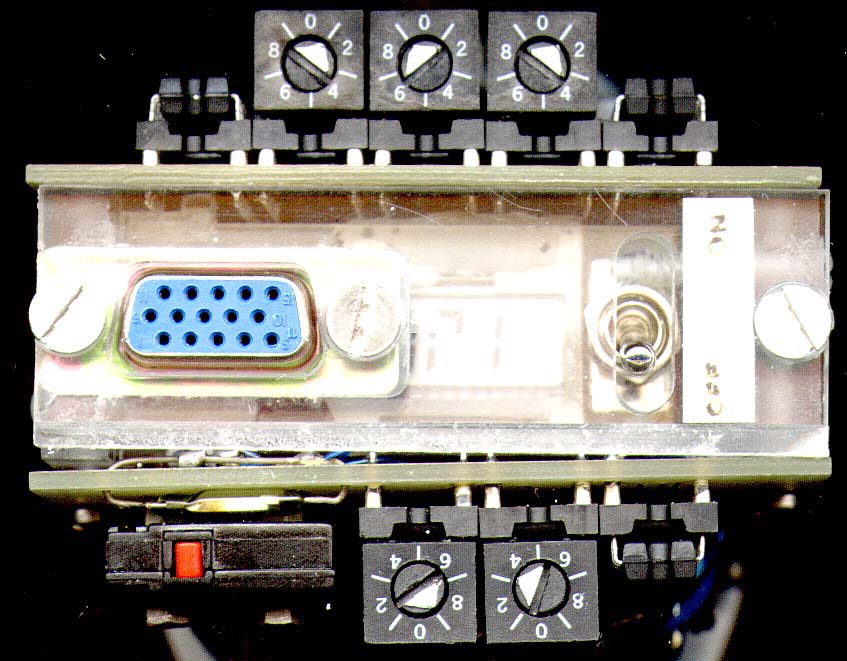

BOTTOM: Photo showing the top of the sequence controller. It shows the digital timer display, the power switch, the controller switches, and the test box connection. |
| MAIN BODY | |
All Photos on this page are copyright of Gurney Instruments. Gurney Instruments 2016. |
TOP: The PVC body of the Baker
Trap. This particular unit was made for the Royal Military College of
Canada.

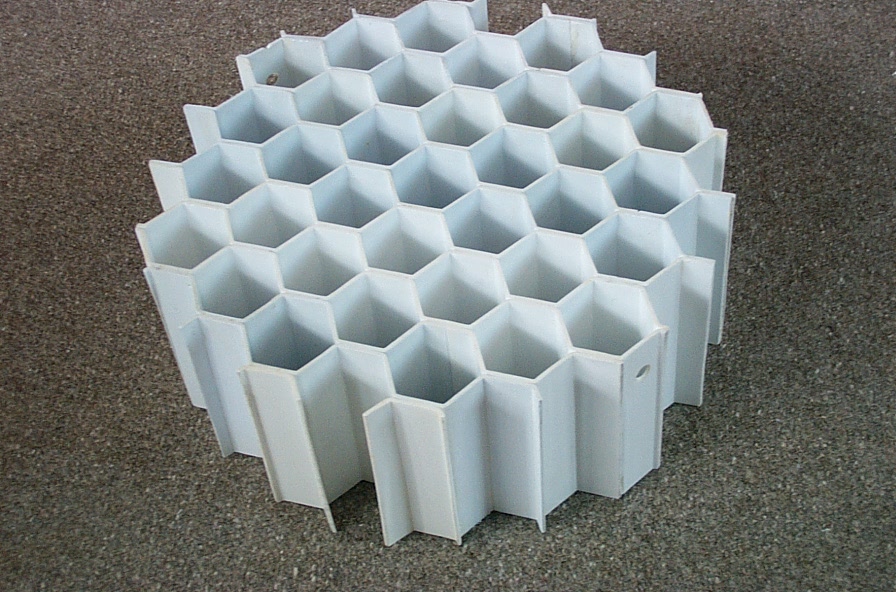

MIDDLE: The baffle for the Baker trap.

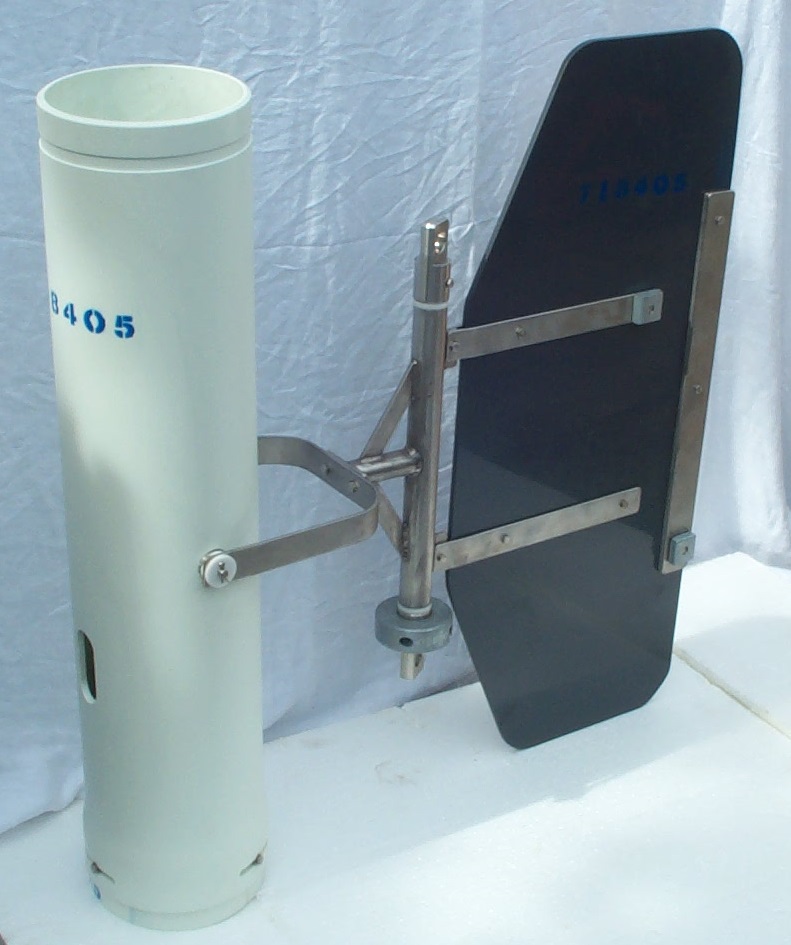

BOTTOM: This is the swivel bar which attaches the Rudder/Fin to the trap. |
